RH-ZT500 Creaseability Tester

Introduction:


RH-ZT500 Creaseability Tester is applied to measure the crease stiffness and bending stiffness in the quiescent state for all kinds of cardboard and paper boxes (such as cigarette packets). It measures a material’s resistance to bending. This can be done either by measuring the force needed to bend a test piece to a predetermined angle or by measuring and determining the bending stiffness, which is an elastic property of the material.



Standards:


BS6965、ISO5628、TAPPIT556、GB/T2679.3、GB/T23144、QB/T1051、ISO2493、GB/T22364



Technical Parameters:


Measure Range

(20-10000)mN
Resolution

1mN

Accuracy

±1%
Test Speed

300º/min or 200º/min

Load Arm Length

Bending stiffness: 1-50mm

Crease stiffness: 10mm

Bending Angle

Bending stiffness: 0~90º

(in common use:15º)

Crease stiffness: 90º

Dimensions

330×340×290mm
Weights

About 14kg

Power

AC110~240V

Product Features:


  1. Adopt high precision load sensor, the error can be controlled within 1%, better than±2%standards.
  2. Double clamp, multi-function. Can measure the bending stiffness of paper and board, also can measure the stiffness of the cardboard cartons and creasing.
  3. Touchscreen operation system, Aluminum control panel, check or delete the testing records randomly. When it connected to a computer, it can automatically saves test results, also can display test curves of compression resistance and save.
  4. Use standard weight or force measurement device for the accuracy of the calibration value for instrument, convenient user or measurement, the calibration department (third party) with standard weight force calibration value.



About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.

Contact Us:


Add: Room 411, 412, Bldg. 15, Tian’an Efficient Technology Park Headquarter Building, No. 555, North Of Panyu Road, Panyu Dist, Guang zhou, Guang dong, China (Mainland)

Post Code: 511400

Tel: +86-18620144017 / +86-020-39388933 / +86 13622844948

Fax: +86-020-39388933

E-mail: runhuyiqi@126.com

Web: www.fnant.com/en/

QQ: 503683921 / 7291919

Wechat: 18620144017 / 13622844948

Whatsapp: +86 18620144017 / +86 13622844948

]]>
RH-ZT500 Cigarette Packets Crease Stiffness Tester //www.fnant.com/en/product/rh-zt500-cigarette-packets-crease-stiffness-tester Sat, 29 Apr 2023 07:00:56 +0000 //www.fnant.com/en/?post_type=product&p=3534 Inventory: In stock Reference Price: Get Latest Price  ]]>

RH-ZT500 Cigarette Packets Crease Stiffness Tester

Introduction:


RH-ZT500 Cigarette Packets Crease Stiffness Tester is applied to measure the crease stiffness and bending stiffness in the quiescent state for all kinds of cardboard and paper boxes (such as cigarette packets). It measures a material’s resistance to bending. This can be done either by measuring the force needed to bend a test piece to a predetermined angle or by measuring and determining the bending stiffness, which is an elastic property of the material.



Standards:


BS6965、ISO5628、TAPPIT556、GB/T2679.3、GB/T23144、QB/T1051、ISO2493、GB/T22364



Technical Parameters:


Measure Range

(20-10000)mN
Resolution

1mN

Accuracy

±1%
Test Speed

300º/min or 200º/min

Load Arm Length

Bending stiffness: 1-50mm

Crease stiffness: 10mm

Bending Angle

Bending stiffness: 0~90º

(in common use:15º)

Crease stiffness: 90º

Dimensions

330×340×290mm
Weights

About 14kg

Power

AC110~240V

Product Features:


  1. Adopt high precision load sensor, the error can be controlled within 1%, better than±2%standards.
  2. Double clamp, multi-function. Can measure the bending stiffness of paper and board, also can measure the stiffness of the cardboard cartons and creasing.
  3. Touchscreen operation system, Aluminum control panel, check or delete the testing records randomly. When it connected to a computer, it can automatically saves test results, also can display test curves of compression resistance and save.
  4. Use standard weight or force measurement device for the accuracy of the calibration value for instrument, convenient user or measurement, the calibration department (third party) with standard weight force calibration value.



About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.

Contact Us:


Add: Room 411, 412, Bldg. 15, Tian’an Efficient Technology Park Headquarter Building, No. 555, North Of Panyu Road, Panyu Dist, Guang zhou, Guang dong, China (Mainland)

Post Code: 511400

Tel: +86-18620144017 / +86-020-39388933 / +86 13622844948

Fax: +86-020-39388933

E-mail: runhuyiqi@126.com

Web: www.fnant.com/en/

QQ: 503683921 / 7291919

Wechat: 18620144017 / 13622844948

Whatsapp: +86 18620144017 / +86 13622844948

]]>
RH-YC152 Determination of Filling Power Tester //www.fnant.com/en/product/rh-yc152-determination-of-filling-power-tester Mon, 06 Feb 2023 07:45:00 +0000 //www.fnant.com/en/?post_type=product&p=3454
RH-YC152 Determination of Filling Power Tester is special instrument used to test the cigarette silk and expanding stem.
Inventory: In stock Reference Price: Get Latest Price  ]]>

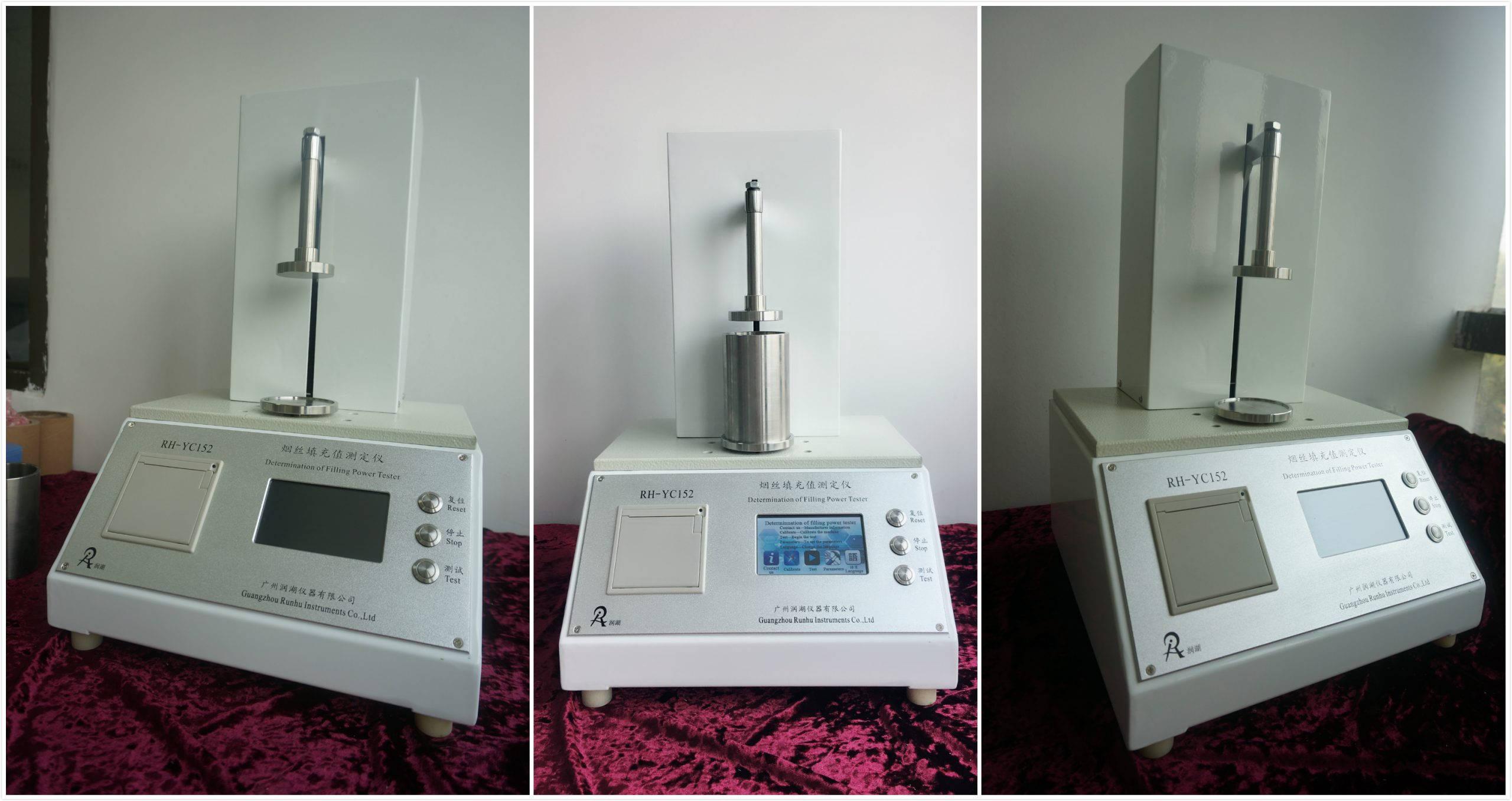

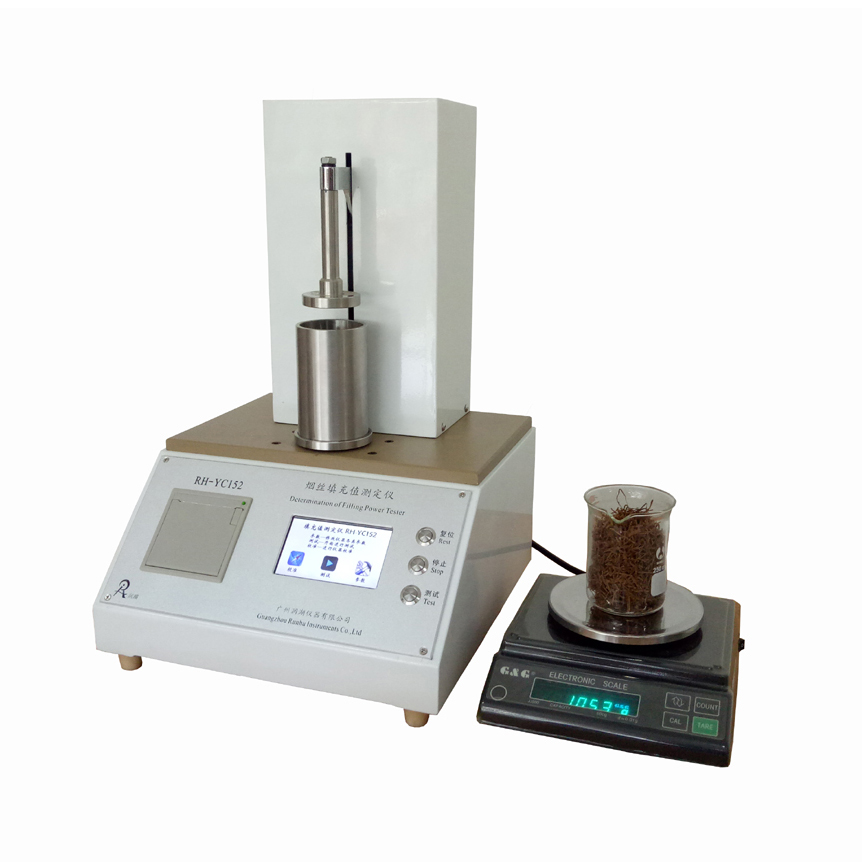

RH-YC152 Determination of Filling Power Tester





Introduction:


RH-YC152 Determination of Filling Power Tester is special instrument used to test the cigarette silk (including cut lamina, expansion of leaf silk, reconstituted tobacco sheet, etc.) and expanding stem. Its performance technical quality is leading level in the international which can completely replace the imported similar products. Filling value is an important physical property of cut tobacco. It not only affects the consumption of tobacco and the cost of cigarettes, but also affects the number of cigarette smoking resists. The amount of cigarette tar released which has important guiding significance of reducing tar and consumption. The equipment is widely used in the tobacco industry, research and quality inspection.

Standards:


YC/T152-2001、YC/T163-2003



Technical Parameters:


Length Test

 Range: 0~100 mm   Resolution:0.01mm

Accuracy: ±0.01mm   Repeatability: <0.03mm

 Measure Force

(3~39.9)N

(Standard: 9.80N/19.6N/29.4N)

Errors: ±0.03N

Press Speed

(9.9~19.9) mm/s

(Standard: 19.5mm/s)

Errors: ±0.1 mm/s

Press Time

(1~99.9)s

(Standard: 30.0s)

Accuracy: ±0.1s

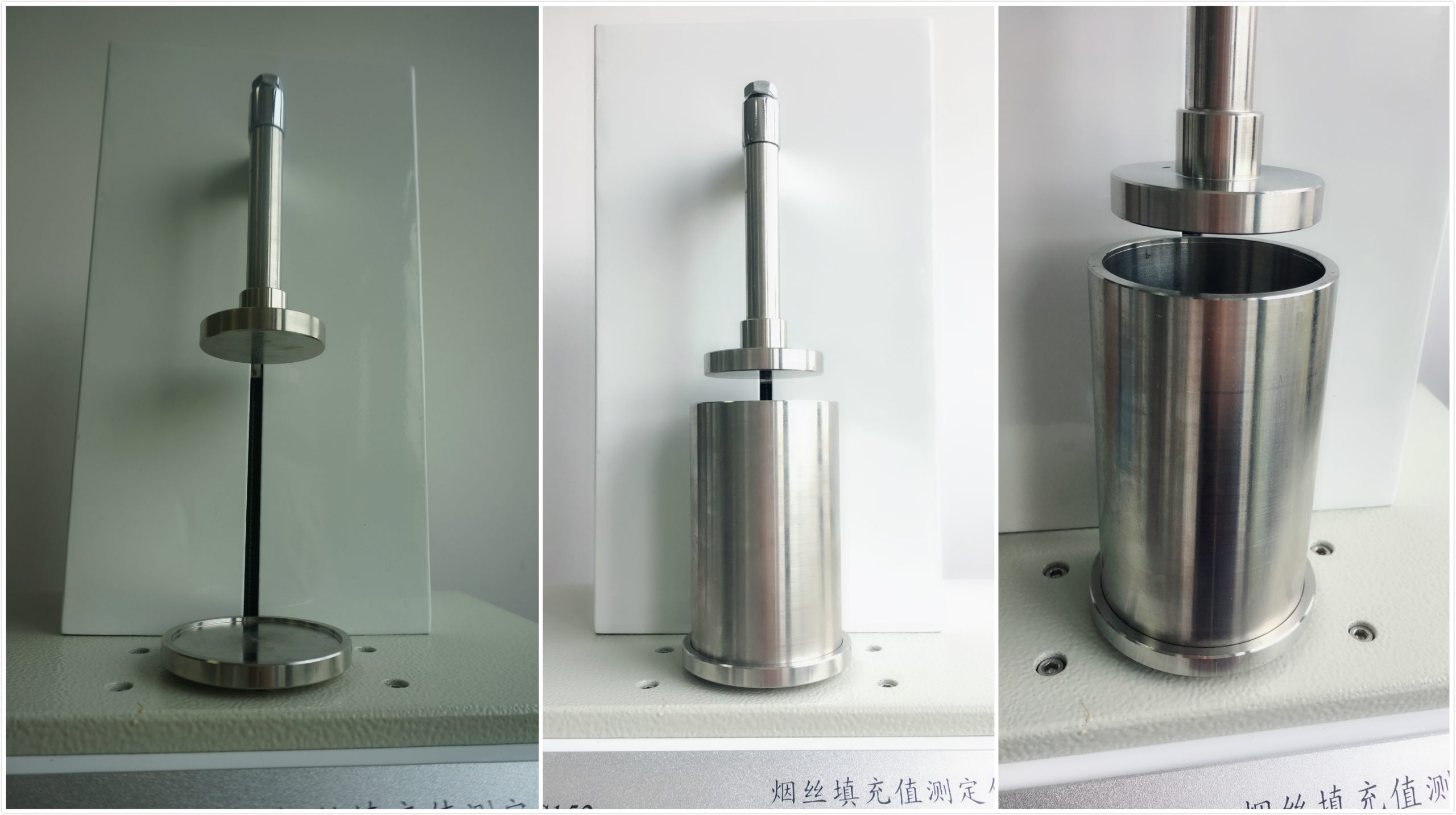

Charging Barrel Size

Inner diameter: 60±0.01mm   Volume: 0.3L

Dimensions

330×340×510 mm
Weights

About 31 kg

Power

AC220V, 50Hz
Display

High resolution color touch screen, Full-automatic test

Product Features:


1.High precision & Repeatability
Using high precision length sensor, Sensor resolution is 0.001mm, which is much higher than the standard length accuracy ±0.01mm. The factory accuracy is in the  <0.02mm, better than <0.03mm standards.
2.Stable performance & Long service life
Master control chip is the Silicon Labs brand(USA),using new drive mode (Japanese Panasonic servo motor drive), precision ball screw drive (German). Aluminum alloy panel, high quality machining technology and reasonable design, ensure the equipment is stable performance, durable.
3.Wide range of application & Functions
The application force, pressure speed and pressure time of the measuring head can be set arbitrarily within a certain range, which improves the applicability of the instrument. This function has a great significance to scientific research and testing institutions. The same instrument can detect the filling value of tobacco and stem filaments and improve the detection efficiency easily. Internal data statistical processing of the test instrument, with functions of sample moisture correction of the test, as long as input the test sample moisture and standard moisture, the revised test results showed that immediately and can save and print it out.
4.Easy to use, easy to operate
High resolution color touch screen displayed in English, friendly man-machine interface operation. Automatic test, the test data statistical handling function, miniature printer output can also be connected to PC. Instrument connect to the weighing unit (Electronic scales), no longer limited to 10g sample weight. The effect of human factors on test results was reduced when the samples were weighed. The weight signal is transmitted directly to the control unit and is involved in the calculation of filling value. The detection data is more scientific and easier to operate.
5. Easy to metrology, calibration
The instrument is equipped with a calibration procedure and a standard length measurement block. The length error and repeatability of the instrument can be easily calibrated by the user or the measurement and calibration department (third party).



About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.

Contact Us:


Add: Room 411, 412, Bldg. 15, Tian’an Efficient Technology Park Headquarter Building, No. 555, North Of Panyu Road, Panyu Dist, Guang zhou, Guang dong, China (Mainland)

Post Code: 511400

Tel: +86-18620144017 / +86-020-39388933 / +86 13622844948

Fax: +86-020-39388933

E-mail: runhuyiqi@126.com

Web: www.fnant.com/en/

QQ: 503683921 / 7291919

Wechat: 18620144017 / 13622844948

Whatsapp: +86 18620144017 / +86 13622844948

]]>
RH-DH04 Tobacco Thickness Tester //www.fnant.com/en/product/rh-dh04-tobacco-thickness-tester Fri, 18 Feb 2022 06:58:22 +0000 //www.fnant.com/en/?post_type=product&p=3396 Inventory: In stock Reference Price: Get Latest Price  ]]>

RH-DH04 Tobacco Thickness Tester

Introduction:


Thickness is an important property of a packaging material and critical for other mechanical properties, such as permeability, tensile strength, impact resistance, etc. Besides, it is an efficient way to reduce production cost by controlling material thickness within reasonable range.
RH-DH04 Tobacco Thickness Tester is based on contacting method and provides accurate and precise thickness measurement for plastic films, sheets, paper, foils, silicon wafers and tobacco sheets.

Standards:


ISO534, GB/T451.3, ISO3034, GB/T6547, QB/T1055



Technical Parameters:


Item

RH-DH04

RH-DH04B

Test range (0~4)mm

(0~18)mm

Resolution

0.001mm

Accuracy

±0.0025mm ±0.05mm
Parallelism ≤0.002mm

≤0.032mm

Contact pressure

(100±10)kpa adjustable (20±0.5)kpa adjustable

Contact area

(200±5)mm² (1000±20)mm²
Dimensions

330*340*350

Weight

25kg



Product Features:


1.Adopt high precision load sensor, the accuracy of force can be controlled better than 1%, usually we control it within 0.5% out of factory.

2.Precision ball screw transmission, Aluminum-alloy control panel, reasonable design for upper and lower stainless steel plate.

3.Color touchscreen operation system, automatic complete operation, has statistics function. Micro-printer, fast and clear printing. Can be connected to PC, save, output results and graphs with our professional software.

4.High performance stepper motor driven, USA chips control, ensure accurate transmission, fast and high efficient test.

5.Professional calibration procedure, user can calibrate the machine easily.



About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:




Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.

Contact Us:


Add: Room 411, 412, Bldg. 15, Tian’an Efficient Technology Park Headquarter Building, No. 555, North Of Panyu Road, Panyu Dist, Guang zhou, Guang dong, China (Mainland)

Post Code: 511400

Tel: +86-18620144017 / +86-020-39388933 / +86 13622844948

Fax: +86-020-39388933

E-mail: runhuyiqi@126.com

Web: www.fnant.com/en/

QQ: 503683921 / 7291919

Wechat: 18620144017 / 13622844948

Whatsapp: +86 18620144017 / +86 13622844948

]]>
RH-BNS1205 Sheet Water Resistant Tester //www.fnant.com/en/product/rh-bns1205-sheet-water-resistant-tester Mon, 24 Jan 2022 08:31:24 +0000 //www.fnant.com/en/?post_type=product&p=3292
RH-BL800 Leather Ball Burst Strength Tester it is used to test the mechanical properties such as leather cracking height and cracking strength.
Inventory: In stock Reference Price: Get Latest Price  ]]>

RH-BNS1205 Sheet Water Resistant Tester

Introduction:


RH-BNS1205 Sheet Water Resistant Tester is a new instrument manufactured by our research and development according to the new national standard. It adopts advanced components, supporting components, single-chip computer. The tester just need to set the shock time then the machine will complete the test automatically. This product is suitable for the tobacco or any other slices water resistant test.



Standards:


YC/T16



Technical Parameters:


Frequency

120±2 times/min
Amplitude

25mm

Time Precision Control

±1″
Sample Dimensions

50×50  mm

Weights

About20kg
Power

AC 220V±22V, 50Hz

Dimensions

400×295×180mm



Product Features:


(1) It adopts synchronous motor, stable amplitude, low noise.

(2) Stainless steel material, reasonable design, durable.

(3) LCD in English, friendly man-machine interface operation.

(4) Vibration time can be set up, automatic test.



About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.

Contact Us:


Add: Room 411, 412, Bldg. 15, Tian’an Efficient Technology Park Headquarter Building, No. 555, North Of Panyu Road, Panyu Dist, Guang zhou, Guang dong, China (Mainland)

Post Code: 511400

Tel: +86-18620144017 / +86-020-39388933 / +86 13622844948

Fax: +86-020-39388933

E-mail: runhuyiqi@126.com

Web: www.fnant.com/en/

QQ: 503683921 / 7291919

Wechat: 18620144017 / 13622844948

Whatsapp: +86 18620144017 / +86 13622844948

]]>
RH-TQ100B Cigarette Paper Air Permeability Tester //www.fnant.com/en/product/rh-tq100b-cigarette-paper-air-permeability-tester Fri, 07 Jan 2022 02:45:41 +0000 //www.fnant.com/en/?post_type=product&p=3068 Inventory: In stock Reference Price: Get Latest Price  ]]>

RH-TQ100B Cigarette Paper Air Permeability Tester

Introduction:


RH-TQ100B Cigarette Paper Air Permeability Tester adopts new technology, with the most common testing method, testing the air permeability of cigarette paper (such as cigarette paper, packing paper, stripe paper, etc.). This instrument uses single chip microcomputer control, fully automatic. Its test method meets the requirements of Schopper, Bentsen and Gurley, etc. It is an advanced instrument for testing paper permeability in paper-making, packaging and cigarette industry in China, and its performance meets the international standard.



Standards:


GB/T458、ISO5636/2、ISO5636/3、ISO5636/5、QB/T1667、GB/T22819、GB/T23227、ISO2965、YC/T172、GB/T12655

Working Principle:


Based on the principle of differential pressure method, the sample is placed between the upper and lower test head, and a constant differential pressure is formed on both sides of the sample. Under the action of differential pressure, the air flows from the high-pressure side through the sample to the low-pressure side. The permeability of the sample is calculated according to the area, differential pressure and flow of the sample.



Technical Parameters:


Measure Range

20-50000CU or 0.1-1250CU

40-100000ml/min or 0.2-2500ml/min

Unit

CU 、μm/(Pa•s) 、ml/min
Resolution

0.01CU

Linear Error

≤1% test
Measuring Area

2cm²

Differential Pressure

0.05kPa~4kPa
Weights

30kg

Dimensions

390×340×480mm



Product Features:


  1. The chip and sensor of the instrument are imported from the United States, and the test results are accurate, good repeatability and high precision. Calibration of pressure sensors and flow sensors is traceable.
  2. The instrument adopts microcomputer technology, the testing process is fully automatic, fast and accurate. Color touch screen display results, and with data recording and processing functions. Thermal printer prints test results.
  3. Compared with the traditional air permeability tester, the instrument has a very high superiority. For the paper with low air permeability, can set a higher differential pressure. And for the paper with high air permeability, can set a lower differential pressure. Easily and accurately determine the results.
  4. This air permeability tester is automatic and fast, and the accuracy of the test results is guaranteed.



About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.

Contact Us:


Add: Room 411, 412, Bldg. 15, Tian’an Efficient Technology Park Headquarter Building, No. 555, North Of Panyu Road, Panyu Dist, Guang zhou, Guang dong, China (Mainland)

Post Code: 511400

Tel: +86-18620144017 / +86-020-39388933 / +86 13622844948

Fax: +86-020-39388933

E-mail: runhuyiqi@126.com

Web: www.fnant.com/en/

QQ: 503683921 / 7291919

Wechat: 18620144017 / 13622844948

Whatsapp: +86 18620144017 / +86 13622844948

]]>
