Main parameters:

---



MODEL	HPS2661	HPS2662	HPS2663
Monitor	LCD display
Display digits	6bit
Resistivity Range	10µΩ･cm－200kΩ･cm	1µΩ･cm－2MΩ･cm	1µΩ･cm－20MΩ･cm
Square Resistance Range	50µΩ/sq－1MΩ/sq	10µΩ/sq－2MΩ/sq	10µΩ/sq－20MΩ/sq
Analog Resistance Range	10µΩ－200kΩ	1µΩ－2MΩ	10µΩ－20MΩ
Accuracy	Resistivity, square resistance: 4%;  Analog resistance: 0.1%
Range mode	Automatic, keep
Measurement speed	Fast: 10 times / sec, medium speed: 5 times / sec, slow speed: 2 times / sec
Trigger mode	Internal, manual, external
Sorting function	Built-in comparators: qualified, super and under super
Signal	Qualified, unqualified, closed
Interface configuration	RS-232C interface / HANDLER / USB Device (optional)
Operating environment	0°C -40°C ,≤90%RH
Guaranteed accuracy environment	23±5℃,≤80%RH
Power requirement	198V -242V(AC),47.5Hz -63Hz
Power consumption	≤30 VA
Size and weight	335 mm (width) x 120 mm (height) x 320 mm (deep) 5.5 kg

Product Features:

---

◎ Super LCD humanized operation interface

◎ Multiple measurements are optional

◎ Automatic measurement data maintenance function

◎ Ultra-fast measurement and display reading

◎ Automatic and manual mode

◎ Gear number display and clock function

◎ Measurement of multiple materials

◎ The professional communication interface can communicate with PC and control instrument remotely

Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:

---

Production Facilities:

---

---

Standards:

---

GB/T 20042.7-2014 Proton exchange membrane fuel cells—-Part 7: Test method of carbon paper properties

GB/T13465.2 2002 Test method of impermeable graphite materials–Part 2: Flexure strength



Principle:

---

The pressure head of the machine applies load to the sample evenly and without impact at the loading speed of 0.01 mm / min ~ 10 mm / min until the sample breaks, and get the breaking load value.



Technical Parameters:

---

Measure Range	（0～10）N
Resolution	0.001N
Accuracy	<±0.5%
Test Speed	0.01 mm/min-20 mm/min
Power	AC110-240V, 50Hz
Dimensions	330×350×510mm
Weights	34kg
Power	AC110-240V, 50Hz

Product Features:

---

1. American chip control, high precision force sensor, high precision.
2. High performance stepper motor, precision ball screw drive, ensure the precision of the instrument transmission. Aluminum alloy panel, high quality alloy steel cutting tool, reasonable design, ensure the instrument durable.
3. Color touch screen display pressure curve, human-computer interface operation, automatic test.
4. Easy to operate, the instrument has test data statistical processing function, micro printer output. Standard RS232 interface for computer connection and data transmission.

Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:

---

Production Facilities:

---

---

Introduction:

---

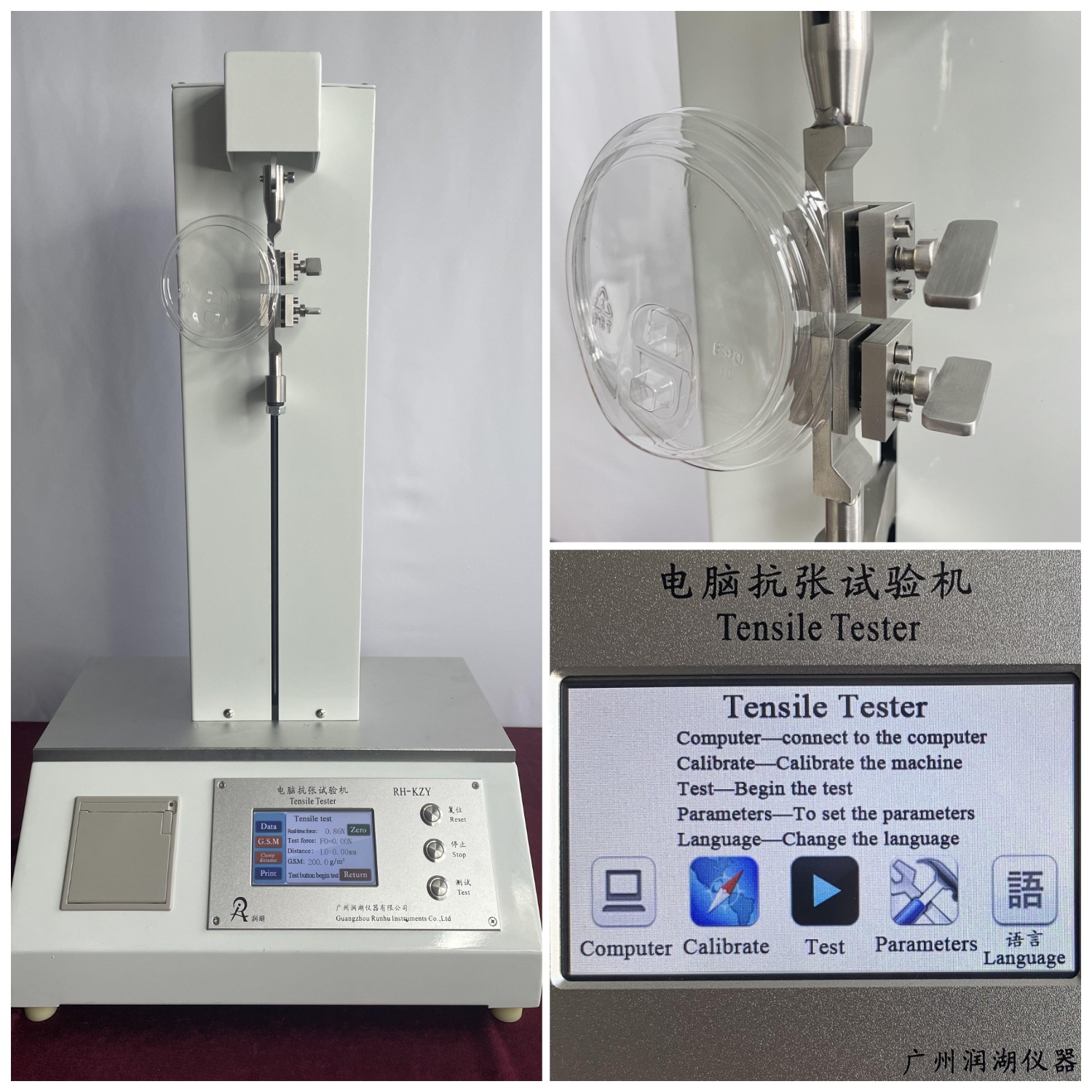

RH-KZY series Tensile Tester is specially designed for paper tensile strength testing. RH-KZY Tensile Tester applies to the tensile strength tests for sheet and other flaky material of low intensity. It can test tensile force, tensile strength, fracture length, tensile energy absorption, tensile index, tensile energy absorption index of paper, paperboard, plastic, film, and other nonmetal material.

Its range has 30N, 300N, 500N, 1000N, etc.,

30N: toilet paper, napkins, towels, wet strength, tensile strength, elongation of the test

300N: the general culture paper and packing paper test

500N/1000N: high strength paper detection



Standards:

---

ISO1924/2、GB/T12914、GB/T1040、GB2792、GB/T14344、GB/T2191、GB/T 465.2、GB/T2171、QB/T1053



Technical Parameters:

---

Item	RH-KZY300
Measure Range	(0~300)N (0~67)lb
Resolution	0.1N
Unit	N lb
Accuracy	±0.5%
Elongation of Measure Range	(0～215）mm
Elongation of Accuracy	±0.1mm
Test Speed	(2～200）mm/min
Return Speed	450 mm/min
Chuck Distance	10～200mm (adjustable) 50、90、100、180、200mm (in common use)
Dimensions	400×230×700mm
Weights	31kg
Power	AC110~240V
Display	English Touch Screen，Automatic test，connected to a computer

Product Features:

---

1. High precisionand repeatability

Force transducer with high precision, The factory accuracy is in the < 0.5%, better than ±1% ISO standards. Using stepper motor, precision ball screw, coupled with reasonable design, precision machining, to ensure the high repeatability of the equipment.

2. Long service life

Precision ball screw drive, the aluminum alloy panels, high quality machining technology and reasonable design, ensure the equipment is durable. Our company has a professional team that specialized in design and programming, We can upgrade the equipment, to ensure that the equipment is high-level.

3. Wide range of application

Several range to choose from, can make the instrument applies to all paper and cardboard. The instrument can test paper tension resistance, tensile strength, elongation, elongation, breaking length, tensile energy absorption, tensile, tensile energy absorption index, breaking time, etc.

4. Easy to use, easy to operate

High resolution color touch screen displayed in English, friendly man-machine interface operation. Automatic test, the test data statistical handling function, miniature printer output can also be connected to PC. Results when connected to a computer, in addition to the automatic memory storage, can also show that the tensile curves and save.

5. Quick and efficient testing

Can be preset distance and speed of tests, make the test more quickly and efficiently.

6. Easy to metro-logy, calibration

Force transducer is on the upper part which is linked to the chuck. Users or measurement, convenient user or measurement, the calibration department (third party) with standard weight force calibration value, can calibrate the error of the instrument easily.
